780mm X 620mm Plastic Thermoforming Machine 35 Times/Min Speed High Transparent

Model Number : TTF-A

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 4 sets / 90 days

Delivery Time : 90 days

Price : Depends on different model

Packaging Details : Without package or wooden

Certification : CE

Automatic : Automatic

HS Code : 8477590000

Structure : Forming

Mainly Used : Plastic trays, containers, boxes, lids

Speed : 35 times/min

Forming Area : 780mm X 620mm

Contact Now

Description Of TTF-A Series :

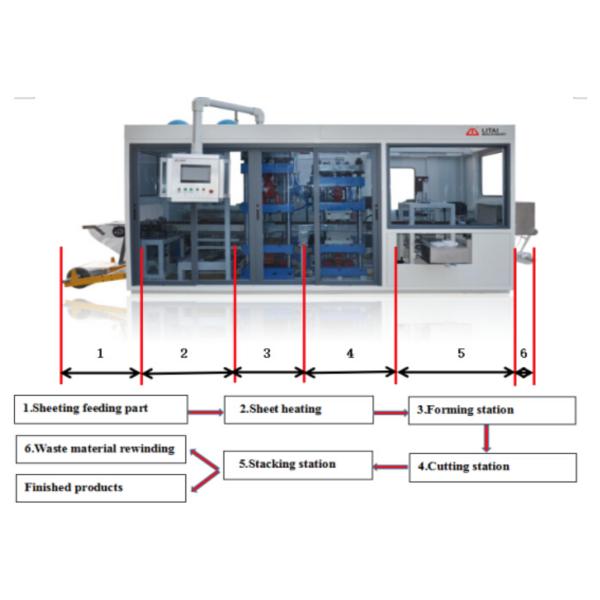

TTF series is mainly used to produce all kinds of high transparent, high tensile turn-up and flat products. Which combined forming,cutting and stacking in one line.

^{Main Technical Paraments}
^Model	^TTF-400A	^TTF-520A	^TTF-780A
^{Max. Forming Area}	^{400 x 300mm}	^{520 x 400mm}	^{780 x 620mm}
^{Max. Forming Depth}	^60mm	^100mm	^100mm
^{Sheet Thickness}	^0.3-1.8mm
^{Max. Forming Speed}	^35times/mins	^30times/mins	^26times/mins
^{Air Pressure}	^0.6-0.8Mpa
^{Air Consumption}	^2m³/min	^3m³/min	^3.6m³/min
^{Water Consumption}	^0.7m³/h
^{Max. Sheet Width}	^450mm	^570mm	^810mm
^{Suitable Sheet}	^{PP, PS, PET, PVC, HIPS etc.}
^{Rated Power}	^58kw	^100kw	^195kw
^{Power Supply}	^{AC, 380V, 50Hz Three-phase four-wire}
^Procedure	^{Forming-Cutting-Stacking}
^{Dimension (LxWxH)}	^{6000x4000x2500}	^{9700x4600x2700}	^{12000x2800x2800}
^Weight	^5.2T	^9T	^15T

Advantages :

Forming, punching,cutting and stacking in one line.
Driven by servo motor, stable operation, low noise, high efficiency.
Suitable for producing plastic trays, containers, boxes, lids, etc.

^{Machine Main Parts}
^{Touch Screen, PLC, Air Switch}	^{Delta, Taiwan}
^{Servopack, Servo Motor}	^{Delta, Taiwan}
^{Circuit Breaker, AC Contact}	^{Schneider, France}
^Cylinder	^{AirTAC, Taiwan}
^Heater	^{Epstein, Germany}
^{Proximity Switch}	^{Turck, Germany}
^{Forming Valve}	^{MAC, America}
^Filter	^{CKD, Japan}
